It is sometimes confusing on which interfaces are available and which can be configured when using one of the NM modules in a Cisco 3850 Switch. We currently offer three different Network modules:
- C3850-NM-4-1G (four 1-Gigabit SFP module slots)
- C3850-NM-2-10G (Combination of 1-Gig and 10-Gig ports)
- C3850-NM-4-10G (four 10-Gigabit slots or four 1-Gigabit slots)
The available configuration is based on which model NM you are using. The intent of this document is to help clear up some of the misunderstood configuration options. Below are details on each NM module and how to configure each…
It is sometimes confusing on which interfaces are available and which can be configured when using one of the NM modules in a Cisco 3850 Switch. We currently offer three different Network modules:
- C3850-NM-4-1G (four 1-Gigabit SFP module slots)
- C3850-NM-2-10G (Combination of 1-Gig and 10-Gig ports)
- C3850-NM-4-10G (four 10-Gigabit slots or four 1-Gigabit slots)
The available configuration is based on which model NM you are using. The intent of this document is to help clear up some of the misunderstood configuration options. Below are details on each NM module and how to configure each one when inserted into the switch

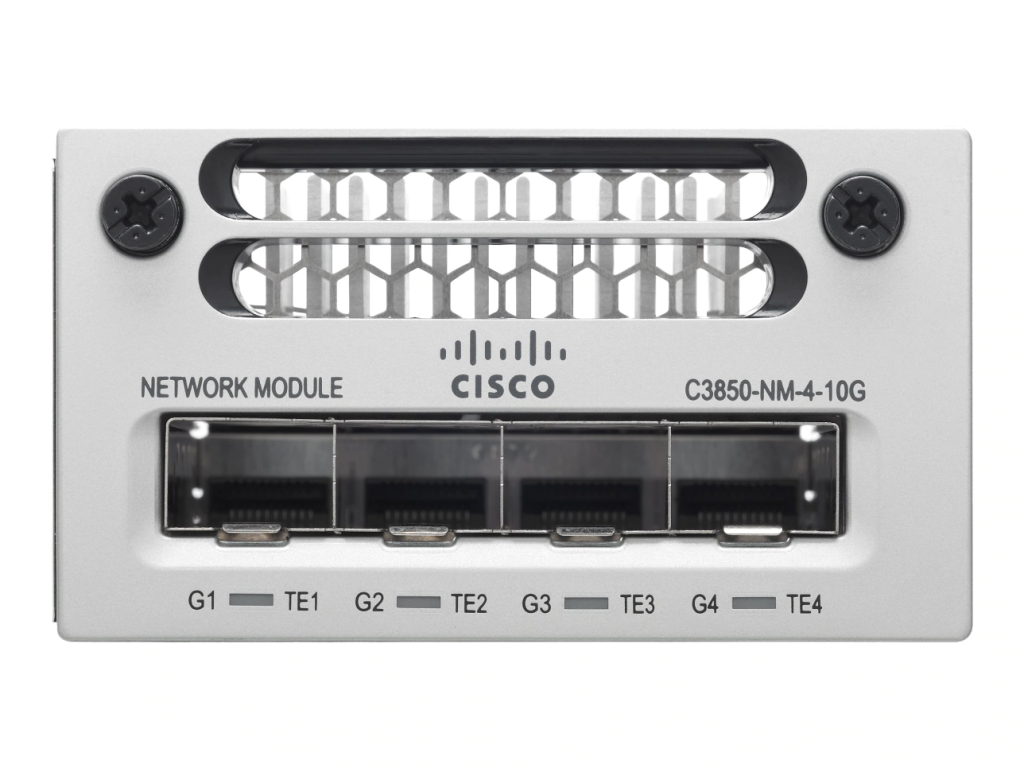

مشخصات فنی ماژول سیسکو C3850-NM-4-10G
- Brand: Cisco
- Model: C3850-NM-4-10G module
- Device Type : Expansion module
- Form Factor : Plug-in module
- Ports : 10 Gigabit SFP+ / SFP (mini-GBIC) x 4
- Connectivity Technology : Wired
- Data Link Protocol : GigE, 10 GigE
- Data Transfer Rate : 10 Gbps
- Interfaces : 4 x network - SFP/SFP+
- Compatible Slots : 1 x expansion slot
- Designed For : Cisco Catalyst 3850-24P-E, 3850-24P-L, 3850-24P-S, 3850-24PW-S, 3850-24T-E, 3850-24T-L, 3850-24T-S, 3850-48F-E, 3850-48F-L, 3850-48F-S, 3850-48P-E, 3850-48P-L, 3850-48P-S, 3850-48PW-S, 3850-48T-E, 3850-48T-L, 3850-48T-S
پ.ن: شما عزیزان میتوانید محصولات شبکه از سوئیچ سیسکو، روتر سیسکو، ماژول سیسکو، اکسس پوینت سیسکو، تلفن سیسکو و لایسنس سیسکو را شبکه کالا با بهترین قیمت و کیفیت خریداری کنید.
